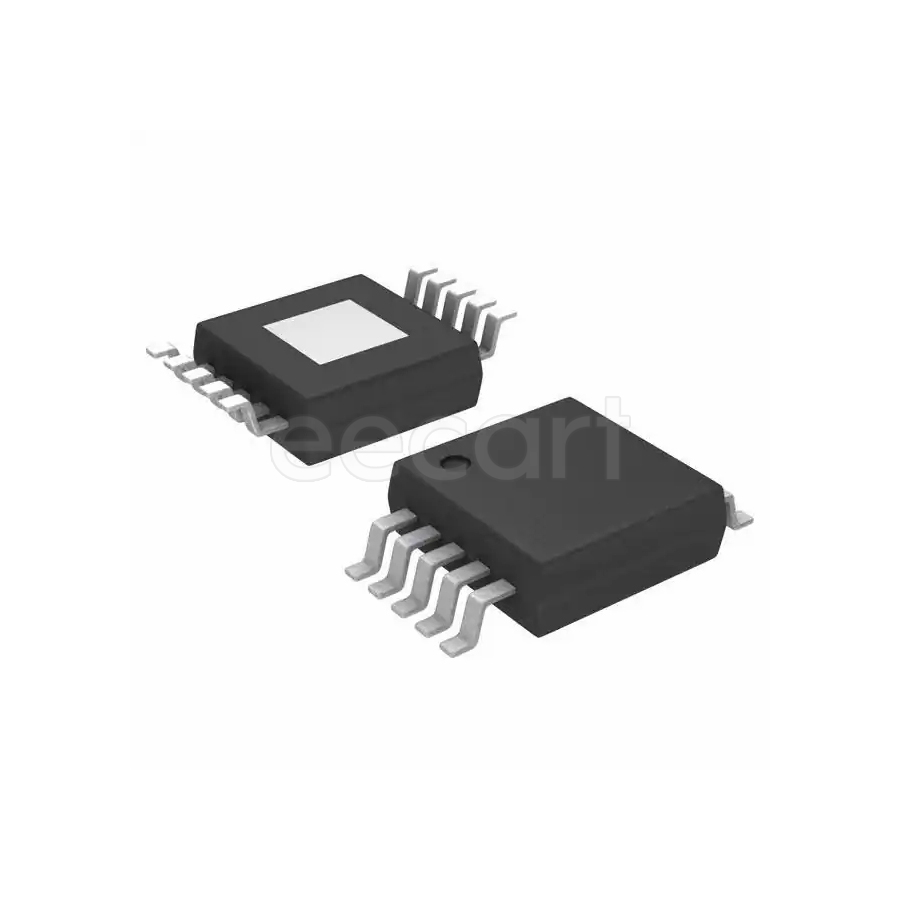

TPS54060DGQ
Manufacturer:
Texas Instruments
Mfr.Part #:
TPS54060DGQ
Datasheet:
Description:
Voltage Regulators - Switching MSOP-PowerPad-10 SMD/SMT Buck-Boost Adjustable 58 V
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 3 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 10 |
| Height | 1.1 mm |
| Thickness | 1.02 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Frequency | 2.5 MHz |
| Min Input Voltage | 3.5 V |
| Output Current | 500 mA |
| Output Voltage | 58 V |
| Operating Supply Voltage | 60 V |
| Output Type | Adjustable |
| Lifecycle Status | Active |
| Max Output Current | 500 mA |
| Quiescent Current | 116 µA |
| Synchronous Rectifier | No |
| Topology | Buck-Boost |
| Switching Frequency | 2.5 MHz |
| Max Input Voltage | 60 V |
| Number of Outputs | 1 |
| Min Output Voltage | 800 mV |
| Max Output Voltage | 58 V |
| RoHS | Compliant |
| Function | Step-Down |
| Packaging | Tube |
Stock: 3065
Distributors
pcbx
pcbxUnit Price$2.16554
Ext.Price$2.16554
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.16554 | $2.16554 |
| 10 | $1.63377 | $16.33770 |
| 25 | $1.37045 | $34.26125 |
| 50 | $1.32502 | $66.25100 |
| 100 | $1.28109 | $128.10900 |
| 300 | $1.23862 | $371.58600 |
| 500 | $1.19756 | $598.78000 |
| 1000 | $1.15786 | $1157.86000 |
| 3000 | $1.11947 | $3358.41000 |
| 5000 | $1.08234 | $5411.70000 |
